Modular Cleanroom Air Shower for Customized Size in Double Doors Interlock Design

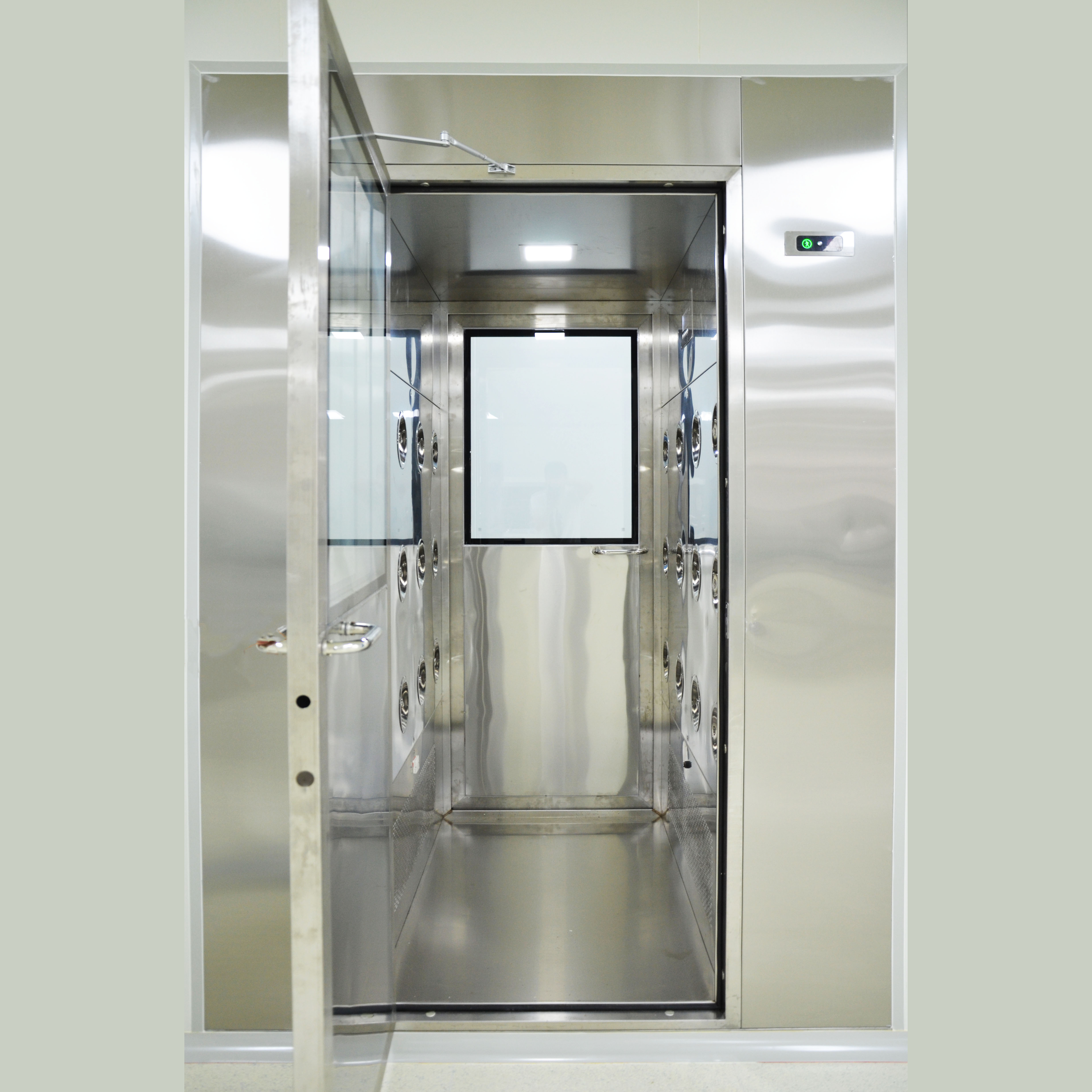

Clean Room Air Shower
Clean Room Air Shower
The air shower is a necessary channel for people to enter the clean
room, which can reduce the pollution problems caused by people
entering and leaving the clean room. Air shower door is also called
air shower room, clean air shower room, clean air shower room, air
shower, dust bath room, blowing room, air shower channel, air
shower room. Air shower door is a necessary passage into the clean
room, can reduce the pollution caused by entering and leaving the
clean room
Specification:
Model | TD-AS/AL-①L | TD-AS/AL-②L | TD-AS/AL-③L | TD-AS/AL-④L |
Filter Efficiency | ≥99.99%(@≥0.3μm) | |||
Air Velocity | ≥20 m/s(4920fpm) | |||
Showering Time | 0~99 s (Adjustable) | |||
Num.of Nozzle | 18 pcs | 36 pcs | 54 pcs | 72 pcs |
Power Supply | AC380V, 3Φ, 50Hz | |||
Rated Power | 1100 w | 2200w | 3300w | 4400w |
Body | High grade steel with ivory color static powder coating | |||
Floor | Stainless steel bottom plate | |||
Door | Aluminum alloy with tempered glass | |||
Overall Dim.(WXDXH) | 1500*1000*2150 mm | 1500*2000*2150 mm | 1500*3000*2150 mm | 1500*4000*2150 mm |
Dim. Of Showering Area(W1XD1XH1) | 800*900*2000 mm | 800*1900*2000 mm | 800*2900*2000 mm | 800*3900*2000 mm |
Weight | 500 kg | 1000kg | 1500kg | 2000kg |
Features:
1. High-Speed Air Jets: Equipped with powerful air blowers that
generate high-speed jets of clean air to effectively remove
contaminants from the surface of personnel and objects.
2. Air Filtration System: Incorporates advanced filtration systems
to ensure the quality and cleanliness of the air used for the air
shower.
3. Stainless Steel Construction: Commonly made of stainless steel
for durability, corrosion resistance, and ease of sanitization.
4. Electronic Controls: Features intuitive electronic control
panels for easy operation and adjustment of parameters such as air
flow speed and duration.
5. Two-Way Air Flow: Some models have a two-way air flow design to
provide thorough cleaning from all directions.
6. Illumination: Fitted with adequate lighting to ensure good
visibility inside the air shower.
7. Interlocking Doors: The entry and exit doors are interlocked to
prevent simultaneous opening and maintain the integrity of the
cleanroom environment.
Applications:
1. Electronics Industry: To remove dust and particles from workers
and materials before entering cleanrooms where electronic
components are manufactured.
2. Pharmaceutical Manufacturing: For sanitizing personnel and
equipment before entering production areas to maintain sterility.
3. Biotechnology and Laboratories: To ensure the cleanliness of
researchers and samples before entering controlled environments.
4. Food Processing: In food production facilities to prevent the
introduction of contaminants.
5. Semiconductor Fabrication: To keep the cleanroom environment
pure during the production of semiconductor chips.
Advantages:
1. Enhanced Cleanliness: Significantly reduces the amount of
contaminants carried into the cleanroom, improving the overall
cleanliness level.
2. Protection of Products: Helps protect sensitive products from
contamination, ensuring quality and reliability.
3. Disease Prevention: Minimizes the risk of cross-contamination
and the spread of diseases in controlled environments.
4. User-Friendly: Simple and quick to use, causing minimal
disruption to the workflow.
5. Long-Term Cost Savings: By maintaining a clean environment, it
reduces the likelihood of product defects and rework, saving costs
in the long run.
