GMP Electronic Dynamic Pass Box In Pharma For Interlocking Transfer Window 600mm

CE/ISO/GMP Standard Electronic Interlocking Transfer Window Static/Dynamic Pass Box For Clean Room
Product Overview

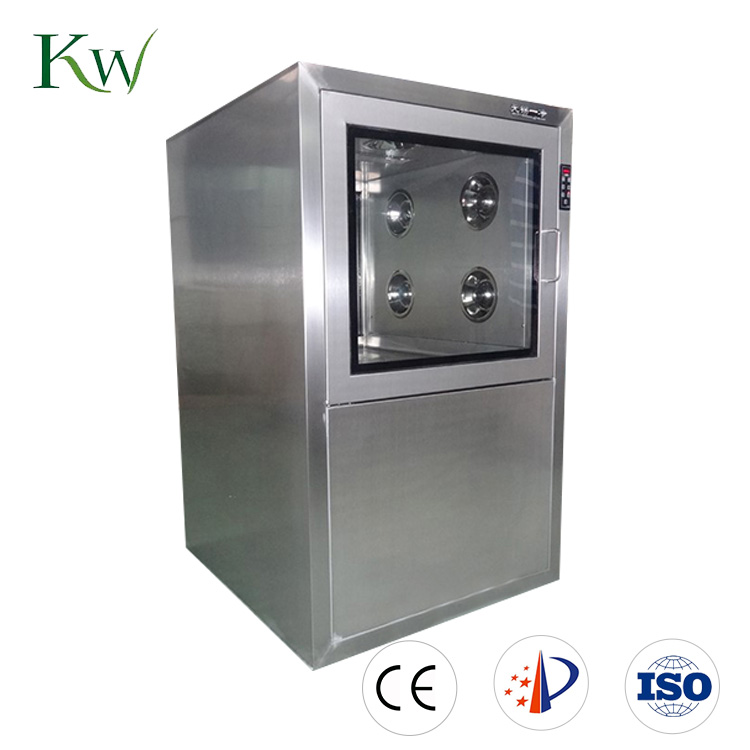

Electronic Interlocking Static/Dynamic Pass Box For Clean Room with CE/ISO/GMP
Pass box is a component of a clean room system that allows for transfer of items between two areas of differing cleanliness. These two areas can be two separate clean rooms or a non-clean area and a clean room. Utilizing pass boxes decreases the amount of traffic in and out of the clean room, which saves energy and lowers risk of contamination. Pass boxes are often seen in sterile laboratories, electronics manufacturing, hospitals, phar maceutical manufacturing facilities, food and beverage production facilities, and many other clean manufacturing and research environments.
FEATURES AT A GLANCE
GMP Electronic Dynamic Pass Box In Pharma For Interlocking Transfer Window 600mm
Outer Size(mm):600(W)*460(D)*900(H) Inner Size(mm): 400(W)*400(D)*400(H) Filters: Pre-Filter, HEPA Filter 99.99%@0.3um High Efficiency Differential Pressure Gauge
UV Light Power supply: 220V,50Hz Installation: It doesn't need installation.
PRODUCT CONFIGURATION
GMP Electronic Dynamic Pass Box In Pharma For Interlocking Transfer Window 600mm
Manual Handle
GMP Electronic Dynamic Pass Box In Pharma For Interlocking Transfer Window 600mm
Control Panel
GMP Electronic Dynamic Pass Box In Pharma For Interlocking Transfer Window 600mm
Differential Pressure Gauge
Specifications
Static Pass Box
Dynamic Pass Box
Working Dimensions
400x400x400, 500x500x500, 600x600x600 or Customized
Material
SS304, SUS304, SS Sheet, Thick.=1.0, 1.2mm
Glass
Double Tempered Glass, Thick.=5mm
Hinge
Mechanic/Electronic Interlocker System
Power Supply
220V, 50HZ
UV Light
YES
YES
Air Velocity
N/A
0.3m/s-0.6m/s
HEPA
N/A
EU 14 grade with an efficiency of 99.990% for 0.3 mic. (GEL TYPE)
Prefilter
N/A
EU 4 grade with an efficiency of 90% for 10 mic.
Accessories
N/A
PAO test port Of HEPA, High Efficiency Differential Pressure Gauge
Successful Project
GMP Electronic Dynamic Pass Box In Pharma For Interlocking Transfer Window 600mm
1
GMP Electronic Dynamic Pass Box In Pharma For Interlocking Transfer Window 600mm
GMP Electronic Dynamic Pass Box In Pharma For Interlocking Transfer Window 600mm
FAQ
Q1:What is the MOQ?
A1:The MOQ is 1 PC

Q2: Can you produce non-standard size ?
A2: Yes, custom size is available

Q3: Can you send samples?
A3: Yes, we can send you sample for evaluating, free or not depending on products.

Q4: What' s the payment terms that you can accept?
A4: T/T, L/C, D/P.

Q5: How about the shipment?
A5: By sea, by air or by railway, according to your demand.

Q6: Are you a factory or a trading company?
A6: We are a GMP factory, setting design, manufacturing &sale in one, you can get best factory quote from us.
