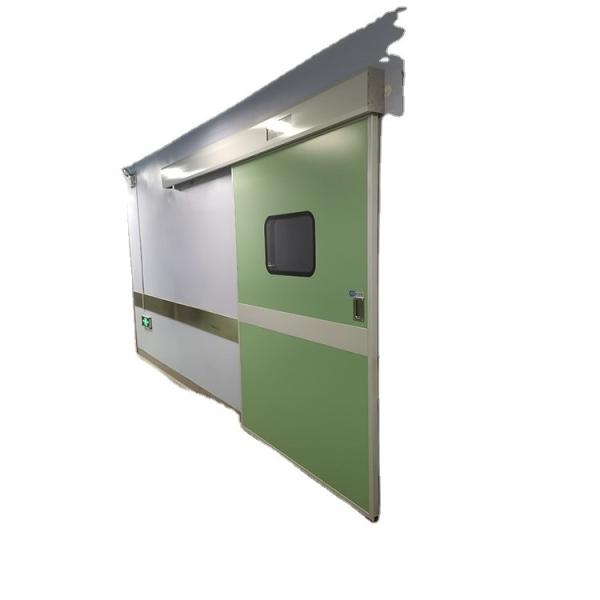

    Automatic High Speed Cleanroom Door Polymer Air Tight Sliding Door

    Ask Lasest Price
    Brand Name : OEM
    Price : $250.00/sets 2-19 sets
    • Product Details
    • Company Profile

    Automatic High Speed Cleanroom Door Polymer Air Tight Sliding Door

    Automatic High Speed Roller Shutters Airtight Door For Clean Room Polymer Door Type
    Product Overview

    Factory Direct Supply of High Quality Automatic Airtight Door for Clean Room With ISO Certificate
    Installation description
    Aluminum alloy encircle frame color steel clean door is mainly used for the opening holes at site or reserved openings. The thickness of door frame can be customized according to the customer requirement. During the installation, a reinforced channel lining is embedded in the wall (provided by us) and then it is fixed with the aluminum profile.
    FEATURES AT A GLANCE
    Automatic High Speed Cleanroom Door Polymer Air Tight Sliding Door
    Automatic Sliding Airtight Clean Door
    Material: Stainless steel
    PRODUCT CONFIGURATION
    Item
    Technical Parameter Description
    Door Frame Shape
    Flat frame type, encircle frame type, clamping type, plug-in type (customized according to customer requirements)
    Material
    Electrogalvanized steel plate, 1.5mm for door frame, 1.0mm for door panel,1.2mm for inner reinforcing plate
    Filler
    Flame retardant paper honeycomb
    Fireproof aluminum honeycomb
    Rock wool
    Polyurethane foam
    Door Leaf Window
    Square Glass
    Oval glass
    Square outside and round inside glass
    Single, double galss
    Hardware Accessories
    Locks: separate execution lock, compact execution lock, elbow press lock, escape lock, touch bead lock, etc.
    Hinge: detachable type, semi-hidden adjustment type, spring hydraulic type, hidden type, etc.
    Sealing device: door leaf self-adhesive type, door frame embedded type, door bottom automatic lifting type.
    Surface Treatment
    Spraying (outdoor fluorocarbon powder, electrostatic powder), stoving varnish, paint-free (color can be customized according to
    the customer requirements)
    Wind Resistance Performance P3(KPa)
    2.8 Air Pressure 100.8KPa
    Airtightness q1=1.0 -q1=0.6
    q(m³/(m-h)) q2=2.1 -q1=1.5
    Door Leaf Weight m²/KG
    Paper honeycomb
    Aluminum honeycomb
    Rock wool
    Polyurethane
    21.5KG
    22.3KG
    24.5KG
    26.0KG
